Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Xin Hengfu
  • Model Number: SZLH 350 aquatic sinking fish shrimp feed production line
  • Type: Feed Pellet Machine, pellet mill
  • Voltage: 380V
  • Power(W): 168kw
  • Dimension(L*W*H): 13m*10m*14m
  • Weight: 18000 kg, 2T-4T
  • Certification: CE and ISO9001/2008
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 3-5T/H
  • power: 22kw-110kw
  • voltage: 380v 50hz 3 pahse
  • Material: Carbon steel and stainless steel
  • Granulating specification(mm): 1.5-6mm
  • warranty time: one year
  • publisher: aquatic sinking fish shrimp feed production line
  • product name: xxhengfu

Packaging & Delivery

Packaging Details Wooden case packing of aquatic sinking fish shrimp feed production line
Delivery Time Delivery Time:20-25 days received your deposit
Company Information

Xinxiang Hengdu Electronic Machinery Co.Ltd,was founded in 1990,currently the best company specialized in research,development and manufacture(produce) of feed machinery and automatic aquatic sinking fish shrimp feed production line in the company. Company products have exported to more than 20 countries.

      Our workers is more than 500.We have our own factory to produce aquatic sinking fish shrimp feed production line    ,the scale is more than 1000m.Our company has more than 150 highly qualified staffs,including first-class mechanical design experts,senior engineers,engineers and more than 30 senior management personals.






Product Description



  Datas about aquatic sinking fish shrimp feed production line

Animal Feed Making Machinery Plants for animal feed

Animal Feed Making Machinery Plants for animal feed



TypeRing Die Pellet Mill
ModelSZLH250SZLH304SZLH350SZLH400SZLH420SZLH508
Capacity(t/h)0.5--1.51--3.53--53--105--146--20

Power

(kw)

Main Power2230/375575/90110110/132/160
Screw Feeder0.750.750.751.51.51.5
Conditioner3335.55.511
Ring Die Diameter(mm)250304350400420508
Pellet Size(mm)2--122--122--122--122--122--12
Weight(kg)5908001625200022004700

Dimension

(L*W*H)mm

1300×

1200×1500

1300×

1300×900

2000×

1000×1200

3300*

1200*2500

3300*

1200*2505

3500*

1470*2800



aquatic sinking fish shrimp feed production line





Introduction

  • aquatic sinking fish shrimp feed production line is widely used to make pellets,raw material can be large soybean straw, corn stalks,cotton stalk, sorghum, peanut vine,  rape straw,sunflower stalk, rice husk, grass, shrubs ect.
  • To meet different outputs requirements,Feeder has a variable speed controller. it can adjust the feeding speed.
  • stainless steel door and chute with scale line stretching cutter, the cutter easy to adjust, and reliable
  • pellet  machine is a key equipment for producing pellet feed, with high output,good performance,low energy consumption,low noise and beautiful appearance characters.
  • The feeding system adopts stepless speed changing motor control, adjust speed conveniently and reliably when making pellet powder feed.

  a. For pig, the pellet diameter is usually ø3.5-6.5mm.
b. For cattle, the pellet diameter is usually ø4.5-8mm.
c. For chicken, pellet diameter is usually ø3.2mm.
d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm.



  Our Advantages of  aquatic sinking fish shrimp feed production line



1. First class quality with competitive price

2.Compact design, optimal use of the work areas

3. Smooth starting and stopping, Better material handling characteristics

4.  Is good for digestion

5. Saving electricity.

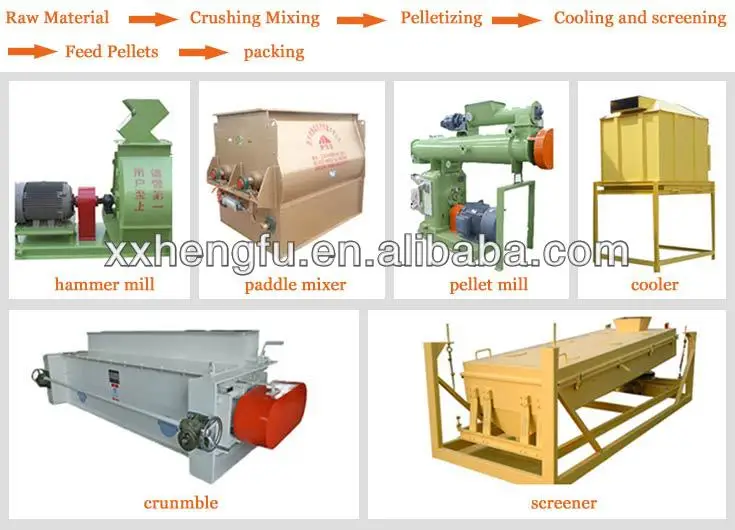

  6 sections of  aquatic sinking fish shrimp feed production line


1. Crushing Section
When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.
2. Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc
3. Pelletizing Section
Acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.
4. Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the wood pellets to about 3-4%, thereby making the feed pellets easier to store.
5. Classifying screen
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.
by large and medium feed mills.
6. Packing Section
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.



 Our Certification






Packaging & Shipping
  Detailed of Packaging & Shipping









Trade Shows



Why choose our products and what are our advantages?

      In China, we offer you lower price with better quality, you can buy the best quality of products from our factory of Poultry,livestock and aquatic sinking fish shrimp feed production line .We have more experience in arranging the shipping to save your costs,and our very professional sales team can offer you better service than other suppliers.

      High quality is our promise, we have more than 20 years' experience in producing feed processing machines in China. Therefore, that is why our products have been popular in Europe, America, Africa and Asia. Our feed processing machines mainly includes hammer mill,mixer,and aquatic sinking fish shrimp feed production line,we have made great strides in the industry depending on competitive price, high quality and superior service.



Our Services



About Our Services

1.Delivery fast -----Goods be sent out within 15 to30 days.

2.Professional-----We have specialized engineers to serve you, we also provide customized service.

3.Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.







FAQ

1.Can you provide the MOQ to us?
A:Our MOQ is one piece,the more you order,the lower the price is .
2.May I know if you are a manufacturer?
A:Yes,the products can be custom-made in accordance with your requirements.
3. Whether your factory is authorized to export products?
A:Yes.
4.What information should I provide to you to get the accurate quotation ?
A: The following may be available:
(1).which poultry/animal do you feed,or you have feed different kinds of animal. Don't worry,please be feeling freely to contact
us,we'll kindly give our advice to you
(2).the diameter,moisture and proportion of raw material may be helpful for us to give you the best answer
(3).the amount of animals to feed and the production capacity you need.
(4).the types of finished feed can be different according to the size-pellet feed or powder feed ,or more detailed information.
More information ,please contact us,We would give you the best reply .
